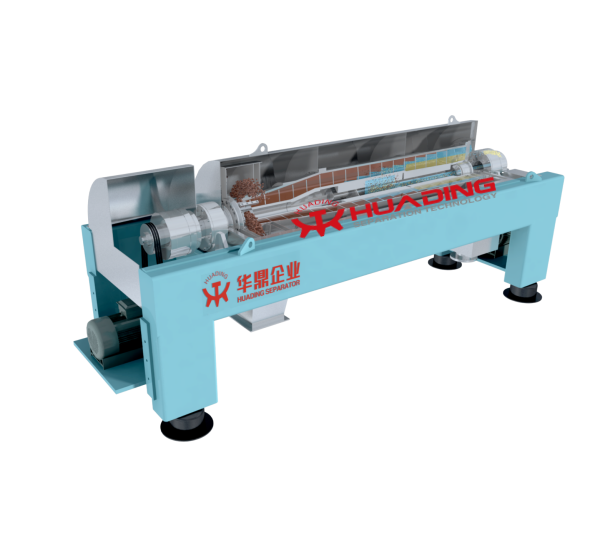

High Wear Resistance, High Slag Discharge, Drilling Fluid Classification Treatment Decanter
Drilling Sludge Dewatering Machine Equipment - 2 Phase High Speed Decanter Centrifuge
Automatic continuous discharging decanter centrifuge for efficient drilling fluid treatment and solids separation.
Standard Equipment
The decanter centrifuge includes a motor control center panel to operate the main drive, back drive, and feed pump. A differential speed controller maintains optimal solids balance in the decanter during operation. All parts exposed to wear are protected by special metal hard facing, ceramic wear bushes, inserts, etc. Bushes and inserts are easily exchangeable, even under field conditions. Maintenance tools and spare parts are supplied.
Key Features
- Optimal for invert drilling operations
- Exceptional design allows for ultra fine removal
- Improves formation management
- Optimizes solids removal and barite recovery
- Decreases drilling costs and waste volumes
- Provides optimal torque control and high separation efficiency
- Features high flow capacity
- Low amperage draw during startup and RPM changes
Technical Specifications
Huading Separator has been developing and manufacturing decanters for over 15 years and is one of China's leading decanter manufacturers. Our diverse range of decanters is applied across various industries, delivering significant benefits to our customers.
| Bowl ID (mm) |
Bowl Speed (rpm) |
L/D |
G-Force |
Capacity (m³/h) |
Solids Removal (m³/h) |
Primary Motor (Kw) |
Weight (Kg) |
Dimension (mm) |
| 250 | 4800~5400 | 3.0~5.0 | 2000~3500 | 3~5 | 0.4 | 11 | 760 | 1600×1100×850 |
| 300 | 4200~4600 | 3.0~5.0 | 2000~3500 | 3~15 | 0.8 | 11~15 | 1500 | 2470×1230×850 |
| 350 | 3700~4200 | 3.0~5.0 | 2000~3500 | 5~20 | 1.2 | 5~22 | 2000 | 2790×1300×880 |
| 400 | 3200~3900 | 3.0~4.8 | 2000~3500 | 5~30 | 2 | 18.5~30 | 2600 | 2950×1400×850 |
| 450 | 3000~3700 | 3.0~5.0 | 2000~3500 | 5~45 | 2.5 | 22~37 | 3200 | 3300×1500×920 |
| 530 | 2700~3450 | 3.0~5.0 | 2000~3500 | 10~80 | 5 | 30~55 | 5200 | 3730×1600×1100 |
| 580 | 2600~3300 | 3.0~5.0 | 2000~3500 | 10~90 | 6 | 45~75 | 6900 | 4000×1400×1600 |
| 650 | 2400~3100 | 3.0~5.0 | 2000~3500 | 20~105 | 8 | 37~90 | 8200 | 4300×1900×1350 |
| 760 | 2200~2900 | 3.0~5.0 | 2000~3500 | 30~120 | 12 | 55~135 | 12000 | 5000×2500×1500 |
| 900 | 1800~2600 | 3.0~5.0 | 2000~3500 | 40~180 | 16 | 75~160 | 18000 | 6500×2700×1500 |
Drive System Options
One Motor Drive
This simple and cost-effective design is ideal for applications with constant solids volume, easy solids conveyance, and less stringent requirements for residual water content. The input shaft is driven by the main motor via a secondary belt drive, generating differential speed as a function of bowl speed and gear transmission. Differential speed can be adjusted by replacing belt pulleys.

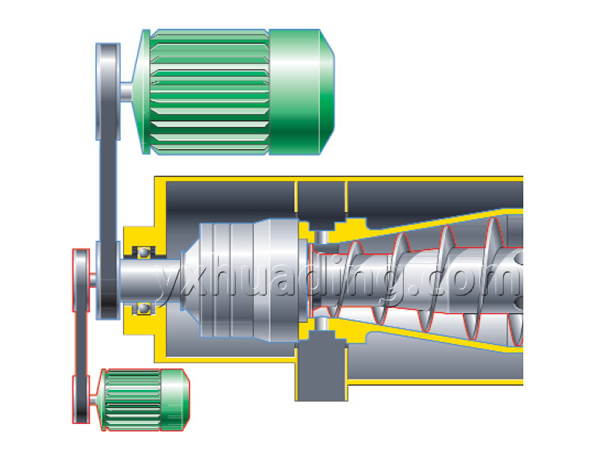

Two Motor Drive
This system enables cost-effective differential speed regulation under various operating conditions with wide regulating ranges. The secondary motor drives the input shaft of the gear, generating differential speed as a function of bowl speed and gear transmission. Ideal for applications with fluctuating solid volumes, difficult solids conveyance conditions, and stringent requirements for residual water content.
Hydro Drive
Similar to the two motor drive system but with a different design approach. Instead of a mechanical gear, a rotating hydromotor is installed and supplied with hydraulic regulation by a pump unit. The differential speed is proportionate to the conveyed oil quantity, allowing for automatic regulation without complications.
Frequently Asked Questions
How can we visit your factory?
International visitors arriving at Shanghai Airport or domestic visitors arriving at Yixing Station will be provided with transportation to our facility.
How do you guarantee the quality of your products?
With over 60 years of experience, we implement strict quality control policies. Advanced processing machines ensure part accuracy, certified operators, multiple processing stages, and internationally renowned transmission and electrical components. Comprehensive testing and inspection throughout production.
What payment methods does your company accept?
We accept most payment methods, with T/T being our primary method.
How long is the warranty period of your products?
12 months warranty coverage.
I have not done business with your company before, how can I trust your company?
Our company has been established on for 14 years and provides all necessary certifications and documentation.
What are your company's shipping terms and delivery time?
Customized solutions with delivery times of 60-90 days.
Do you give any discount?
We strive to provide the best possible pricing for all our customers.
